Submersible pump in discharge tube
Amacan P
Wet-installed submersible motor pump for installation in discharge tubes, with axial propeller in ECB design, single-stage, single-entry. ATEX-compliant version available.
| Main Applications | Technical Data |
| Irrigation pumping stations | Max. flow rate 25200 m³/h |
| Drainage pumping stations | Max. head 12 m |
| Stormwater pumping stations | Max. allowed working pressure 16 bar |
| Raw water pumps and clean water pumps in waterworks and waste water treatment plants | Max. allowed fluid temperature 40 °C |
Dry-installed pump

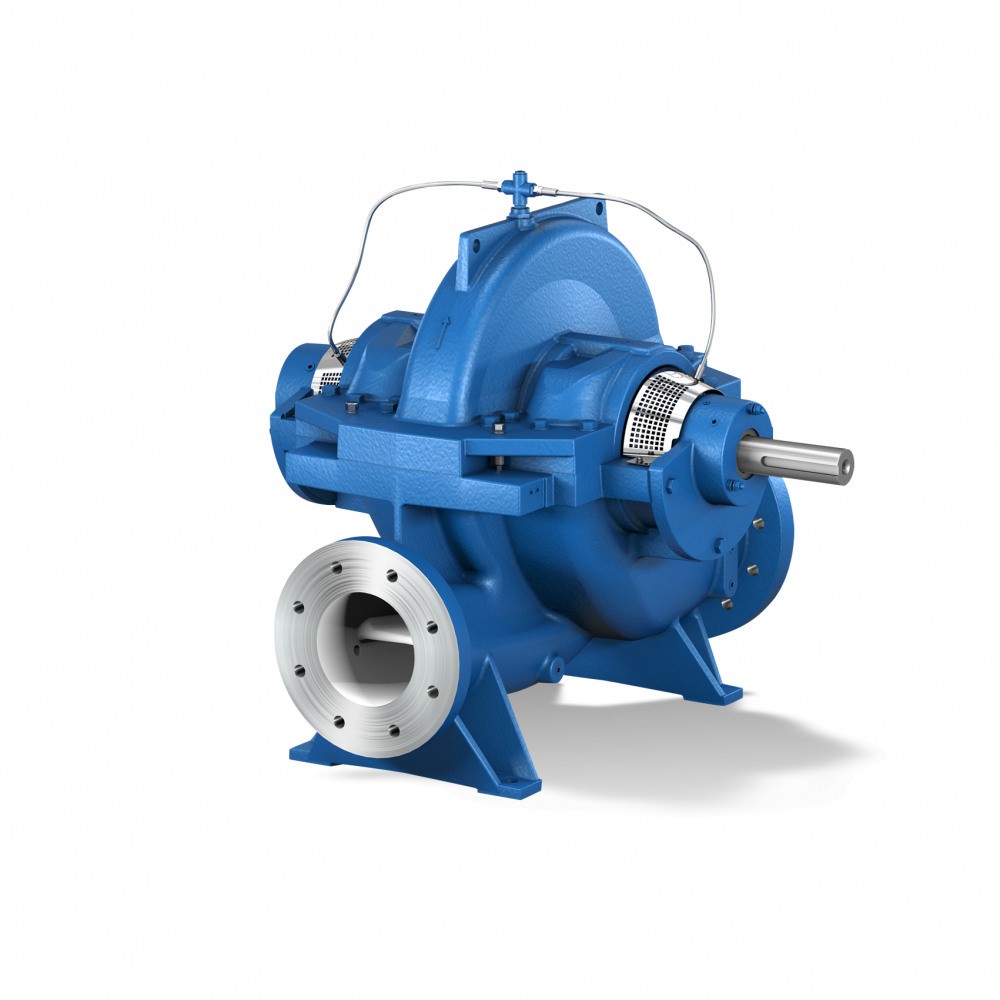

Omega
Single-stage axially split volute casing pump for horizontal or vertical installation, with double-entry radial impeller, mating flanges to DIN, EN or ASME.
| Main Applications | Technical Data |
| Waterworks | Max. flow rate 2880 m³/h |
| Desalination plants | Max. head 220 m |
| Pressure boosting | Max. allowed working pressure 25 bar |
| Water transport | Max. allowed fluid temperature 140 °C |
Vertical Turbine Pumps

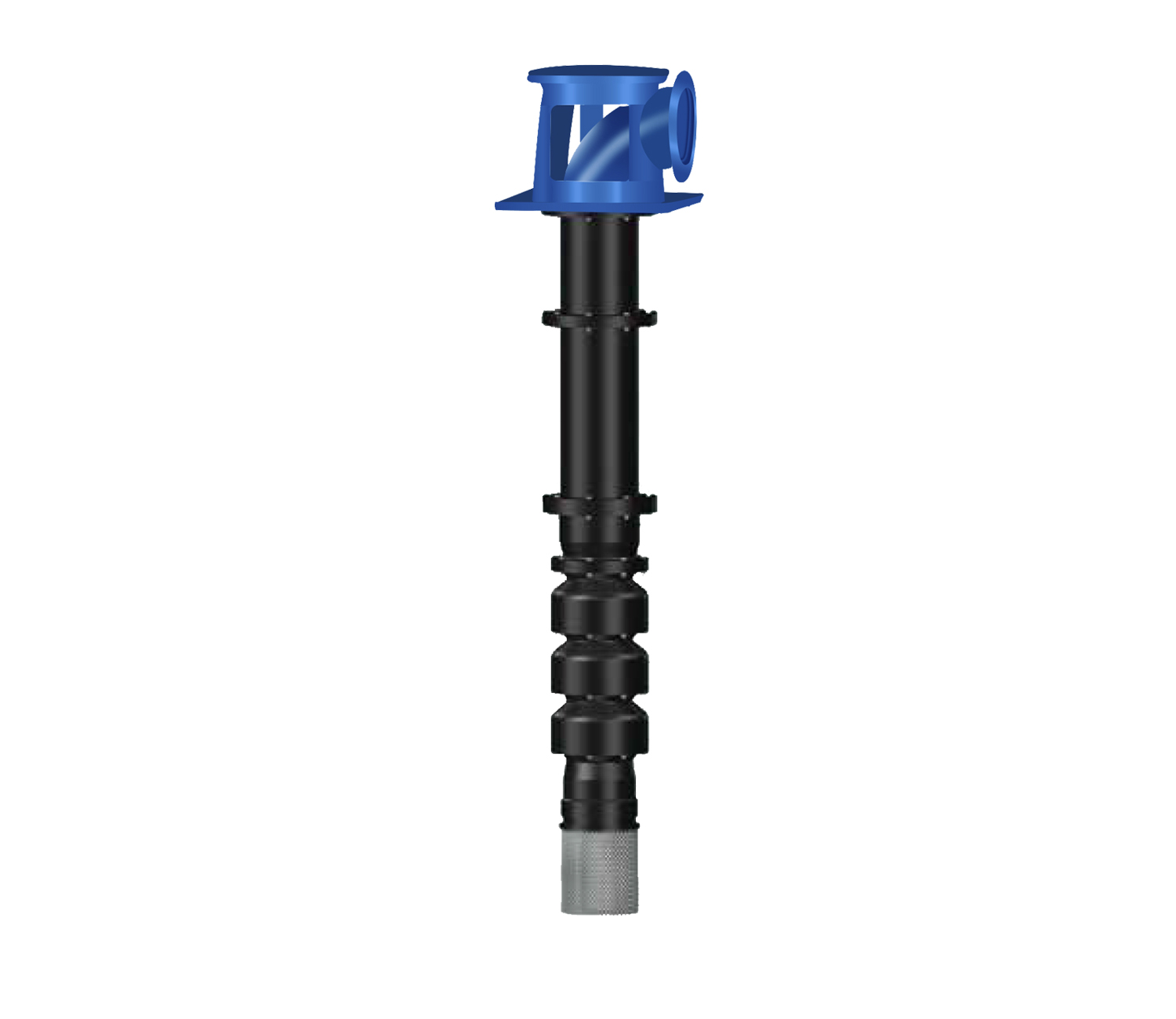

B-Pump
Multistage vertical turbine pump with closed impellers, column section with bearing assembly, shaft sleeve, shaft sealed by gland packing, driven by electric motor or diesel engine.
| Main Applications | Technical Data |
| Capacity up to | 2300 m³/h |
| Total head up to | 160 m |
| Speed up to | 3500 RPM |
| Temperature up to | 150 °C |
| Suspended Depth up to | 120 m |
Vertical Turbine Pumps
B-Pump
Multistage vertical turbine pump with closed impellers, column section with bearing assembly, shaft sleeve, shaft sealed by gland packing, driven by electric motor or diesel engine.
| Main Applications | Technical Data |
| Capacity up to | 2300 m³/h |
| Total head up to | 160 m |
| Speed up to | 3500 RPM |
| Temperature up to | 150 °C |
| Suspended Depth up to | 120 m |
